986-02

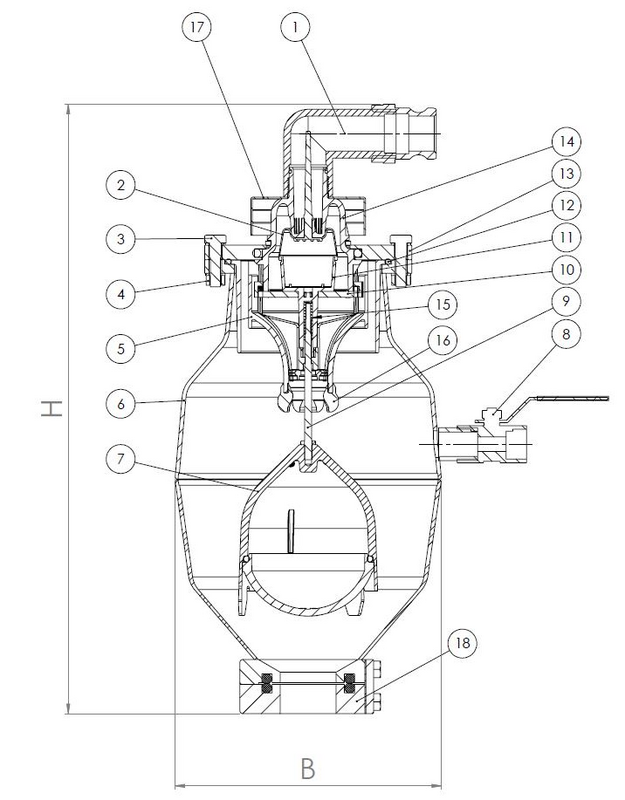

Model 986, with Isolation Device Automatic air release and vacuum valve, stainless steel 316Ti,for operating range: 0 – 250 PSI (17.2 Bar),outdoor application possible
| Material: |
Air valve body: stainless steel Threaded connection: stainless steel Float rod/spring: stainless steel Float ball: POM Outlet elbow: PE 100 with strainer of stainless steel |
|---|---|
| Medium | Sewage |
Automatic ARV with Isolation Device in one body (shut-off blade is not included in delivery package, separate order, see Model no. 8400006500).
Automatic and infinitely variable air valve for potable water and waste water applications.
Recommended for outdoor application in frost-free areas.
Maximum Operating Pressure: 250 PSI (17.2 Bar)
Operating Range: 0 – 250 PSI (0 - 17.2 Bar)
Valve seat does not contact the medium (air cushion).
Two connections for effective flushing during maintenance work (top inlet flushing connection).
All mechanical parts are manufactured of corrosion-resistant materials.
Valve Maintenance:
Air valves must be tested for function and maintained at least once per year. Valve must be shut off and flushed at both lateral connections.
|
Order Nr.
|
Max Pressure |
Body |
Height |
Type |
Width |
Connection |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
8889867041
|
250 PSI (17.2 bar) | Stainless Steel | 24.5" (623 mm) | Thread | 10.75" (273 mm) | 2" FNPT | 47,84 LBS |
|
Technical Documents
|
|---|
| Data sheet - H-TEC Model 986-02 With Shut-off, ss 316 |
